IBM 80H Hybrid-Servo Injection Blow Molding Machine
A larger hybrid injection platform than IBM 50H, with a published 730 cm³ injection volume and product range up to 1 L.
IBM 80H
A larger hybrid injection platform than IBM 50H, with a published 730 cm³ injection volume and product range up to 1 L.
- Electro-hydraulic hybrid servo architecture
- Cleanroom-ready configuration
- Servo-driven indexing
- Dual-cylinder clamping
- CNC-controlled melt back pressure
IBM 80H technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 15 mL–1 L
- Injection volume
- 730 cm³
- Injection weight
- 510 g HDPE
- Clamping force (injection / blowing)
- 960 / 133 kN
- Maximum product size
- H275 × Ø120 mm
- Machine dimensions (L × W × H)
- 5.7 × 2.35 × 2.3 m
- Machine weight
- 12 t
Process and platform notes
- The hybrid servo architecture is designed to improve energy efficiency. Actual energy use depends on the selected machine, configuration, resin, mold and operating conditions.

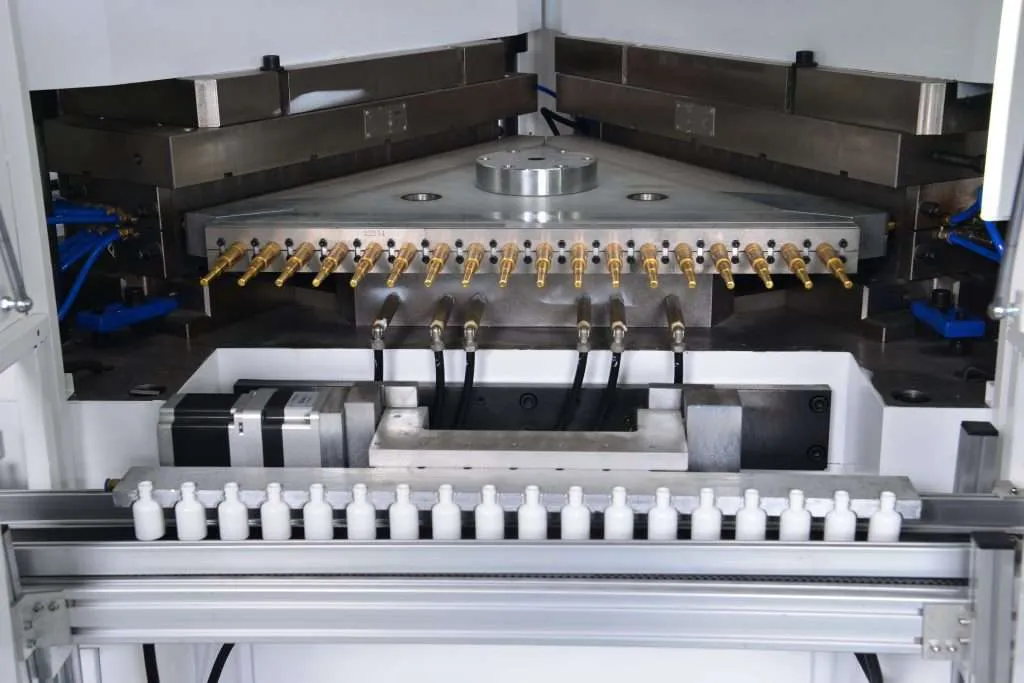

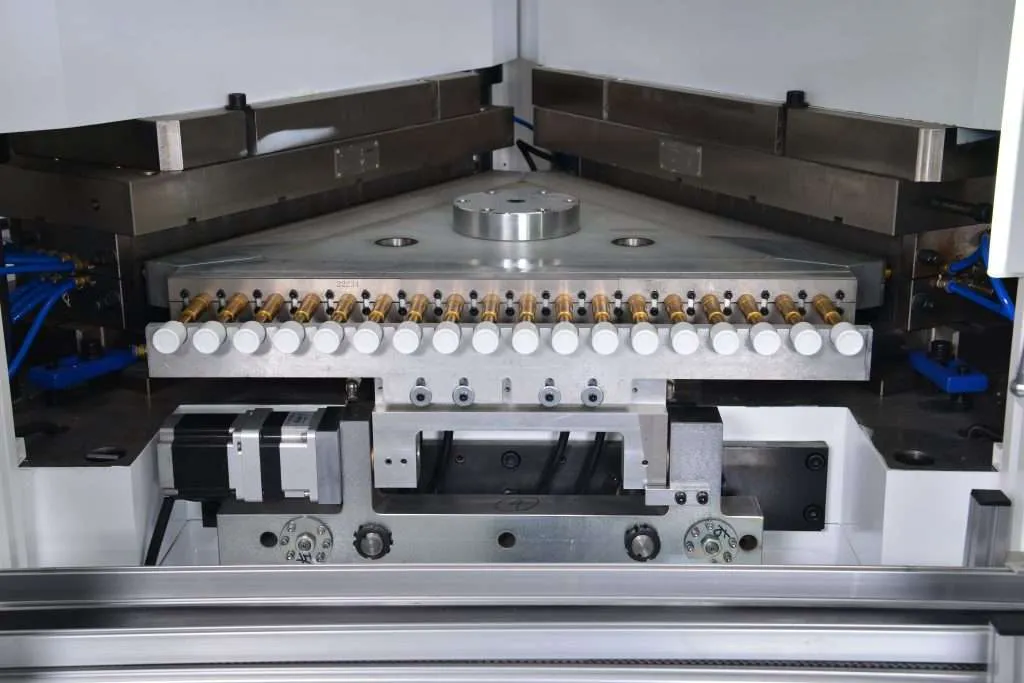

- Servo-driven indexing delivers fast, quiet and vibration-free rotation.

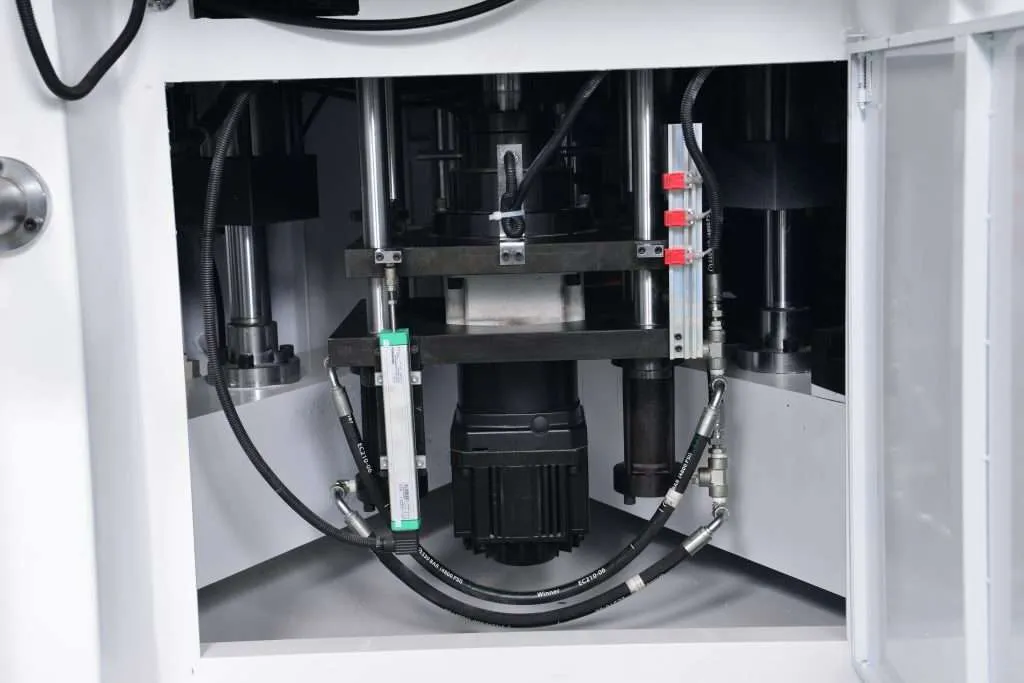

- A bottom-mounted clamping cylinder saves space, supports smooth mold rotation and helps prevent oil-leak contamination.
- Dual-cylinder clamping provides quick, stable cycles and balanced force across the mold.

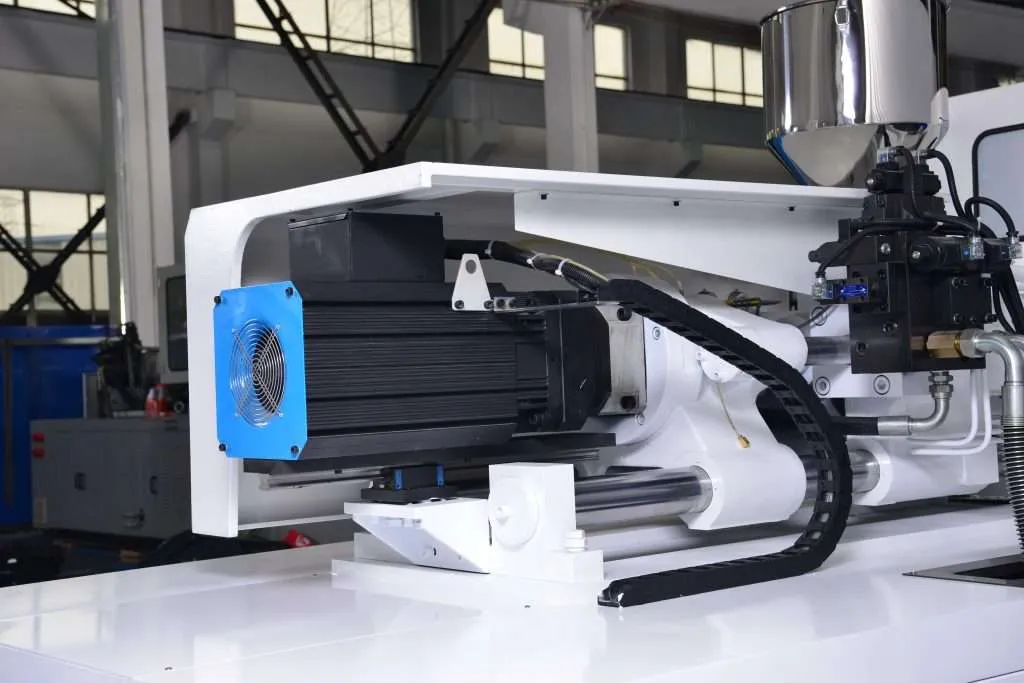

- CNC-controlled melt back pressure supports convenient, reliable and consistent plasticizing.
IBM 80H full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 60 mm |
| Screw L/D ratio | 21 |
| Maximum injection volume | 730 cm³ |
| Injection weight (HDPE) | 510 g |
| Maximum injection pressure | 135 MPa |
| Maximum screw stroke | 272 mm |
| Screw speed | 10–250 rpm |
| Barrel heating power | 19 kW |
| Heating zones | 4 |
| Injection clamping force | 960 kN |
| Blow clamping force | 133 kN |
| Mold opening stroke | 140 mm |
| Rotary table lifting height | 75 mm |
| Maximum platen size (L × W) | 850 × 390 mm |
| Minimum mold thickness (±0.05 mm) | 280 mm |
| Mold heating power | 4 kW |
| Ejection stroke | 295 mm |
| Main servo motor power | 55 kW |
| Hydraulic system pressure | 14 MPa |
| Product volume | 0.015–1 L |
| Maximum product height | ≤ 275 mm |
| Maximum product diameter | ≤ 120 mm |
| Dry cycle time | 4 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 1.2 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Cooling water flow | 3.5 m³/h |
| Machine dimensions (L × W × H) | 5.7 × 2.35 × 2.3 m |
| Machine net weight | 12 t |
| Total rated power (electric pre-plasticization configuration) | 125 kW The manufacturer specifies the electric pre-plasticization configuration; confirm the quoted machine configuration. |
