IBM 50H Hybrid-Servo Injection Blow Molding Machine
A versatile hybrid servo platform combining energy efficiency, balanced clamping and consistent plasticizing.
IBM 50H
A versatile hybrid servo platform combining energy efficiency, balanced clamping and consistent plasticizing.
- Electro-hydraulic hybrid servo architecture
- Cleanroom-ready configuration
- Servo-driven indexing
- Dual-cylinder clamping
- CNC-controlled melt back pressure
IBM 50H technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 5 mL–1 L
- Injection volume
- 390 cm³
- Injection weight
- 275 g HDPE
- Clamping force (injection / blowing)
- 610 / 89 kN
- Maximum product size
- H245 × Ø100 mm
- Machine dimensions (L × W × H)
- 4.6 × 2.1 × 2.05 m
- Machine weight
- 7 t
Process and platform notes
- The hybrid servo architecture is designed to improve energy efficiency. Actual energy use depends on the selected machine, configuration, resin, mold and operating conditions.
- Servo-driven indexing delivers fast, quiet and vibration-free rotation.

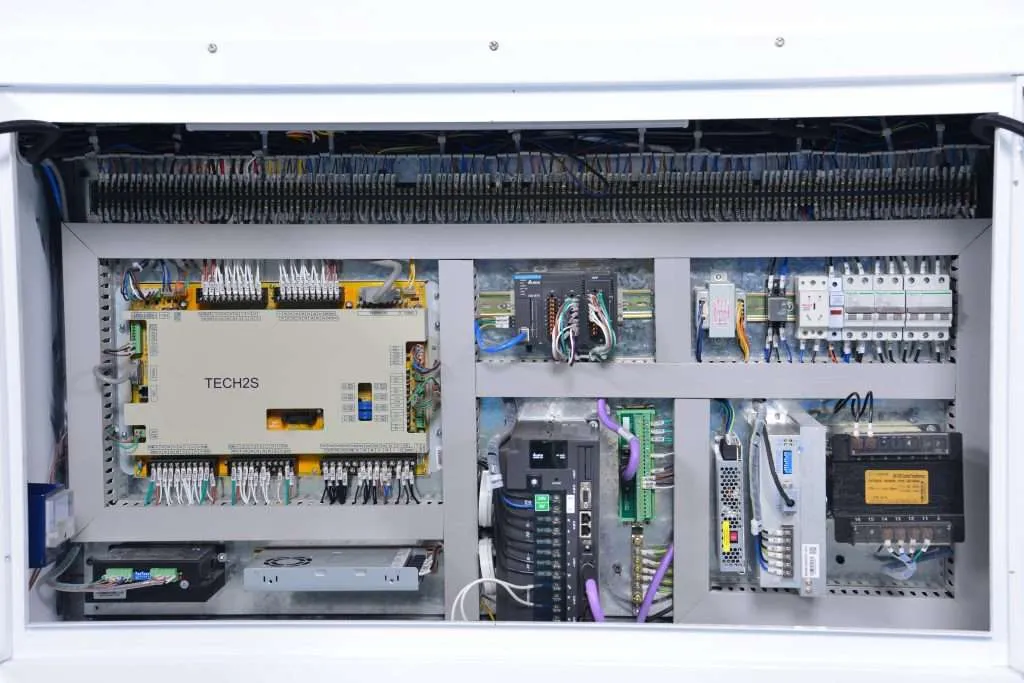

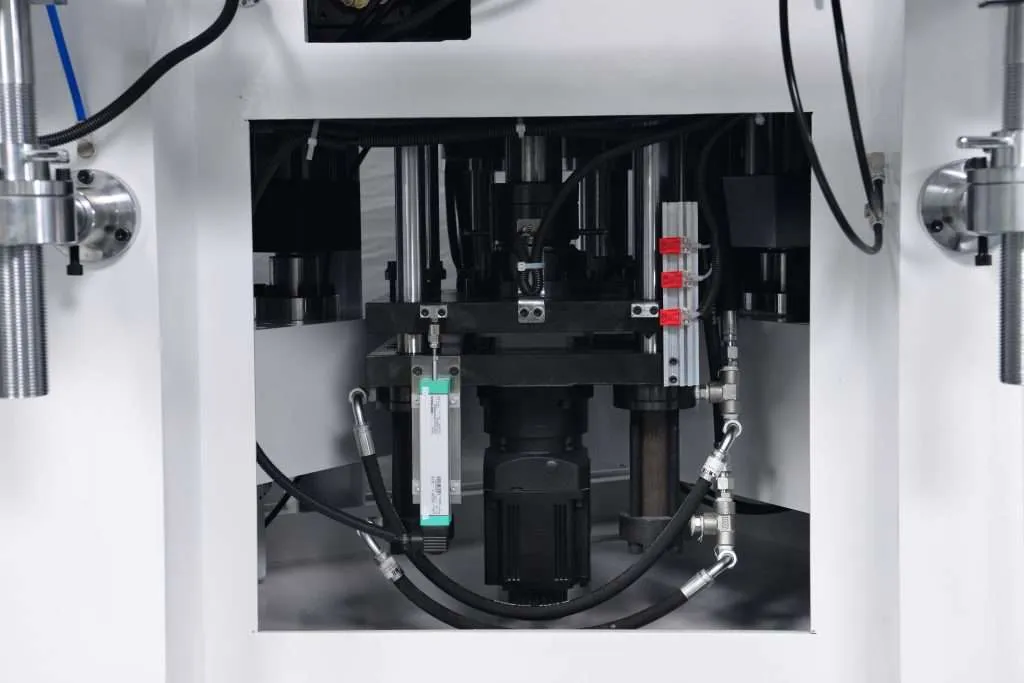

- A bottom-mounted clamping cylinder saves space, supports smooth mold rotation and helps prevent oil-leak contamination.

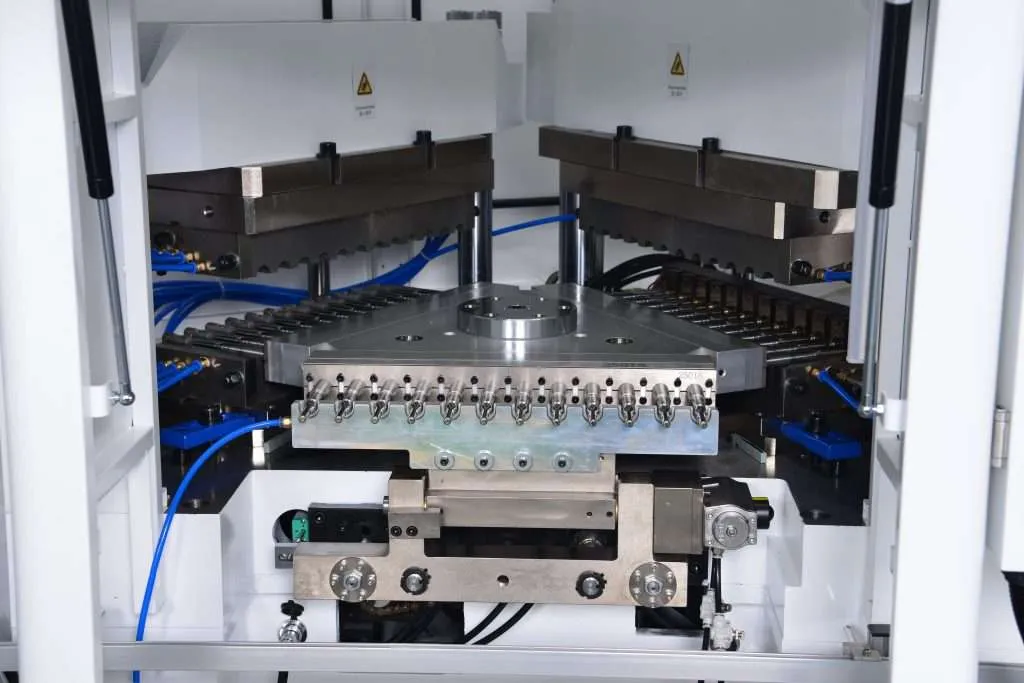

- Dual-cylinder clamping provides quick, stable cycles and balanced force across the mold.

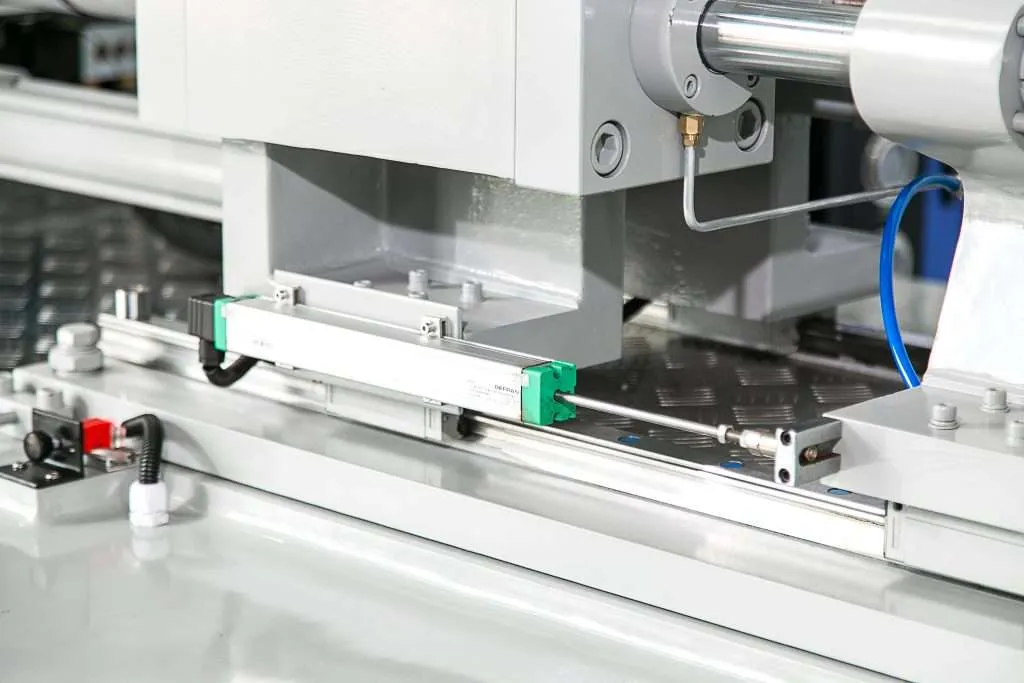

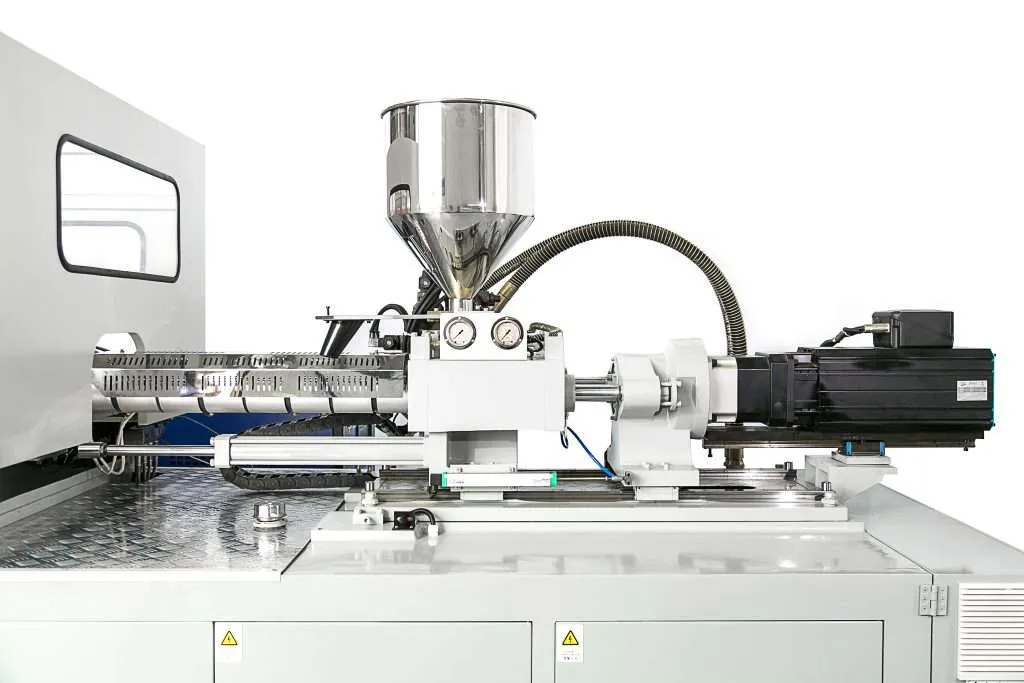

- CNC-controlled melt back pressure supports convenient, reliable and consistent plasticizing.
IBM 50H full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 50 mm |
| Screw L/D ratio | 21 |
| Maximum injection volume | 390 cm³ |
| Injection weight (HDPE) | 275 g |
| Maximum injection pressure | 112 MPa |
| Maximum screw stroke | 208 mm |
| Screw speed | 10–260 rpm |
| Barrel heating power | 12.4 kW |
| Heating zones | 4 |
| Injection clamping force | 610 kN |
| Blow clamping force | 89 kN |
| Mold opening stroke | 120 mm |
| Rotary table lifting height | 64 mm |
| Maximum platen size (L × W) | 580 × 390 mm |
| Minimum mold thickness (±0.05 mm) | 240 mm |
| Mold heating power | 2.5 kW |
| Ejection stroke | 260 mm |
| Main servo motor power | 23 kW |
| Hydraulic system pressure | 14 MPa |
| Product volume | 0.005–1 L |
| Maximum product height | ≤ 245 mm |
| Maximum product diameter | ≤ 100 mm |
| Dry cycle time | 3.2 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 1.2 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Cooling water flow | 3.5 m³/h |
| Machine dimensions (L × W × H) | 4.6 × 2.1 × 2.05 m |
| Machine net weight | 7 t |
| Total rated power (electric pre-plasticization configuration) | 63 kW The manufacturer specifies the electric pre-plasticization configuration; confirm the quoted machine configuration. |
