BPET-125V4 Injection Stretch Blow Molding Machine
A larger injection stretch blow molding model for automated PET bottle and container production.
BPET-125V4
A larger injection stretch blow molding model for automated PET bottle and container production.
- Single-step automation
- Integrated injection and stretching
- Integrated blowing and ejection
- Flash-free product output
- Clear PET container production
BPET-125V4 technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Injection volume
- 520 cm³
- Clamping force (injection / blowing)
- 685 / 286 kN
- Maximum capacity by cavity count
- 1 cavity: 5 L; 2: 3 L; 3: 2 L; 4: 1,000 mL; 5: 800 mL; 6: 600 mL; 7: 450 mL; 8: 400 mL; 9: 300 mL; 10: 250 mL; 11: 200 mL; 12: 100 mL
- Machine dimensions (L × W × H)
- 5.3 × 2.1 × 3.1 m
- Machine weight
- 11.6 t
Process and platform notes
- The production cycle integrates preform injection, stretching, blowing and ejection in one continuous process.
- The process is designed to produce flash-free, scrap-free containers with seamless bases and strong transparency.
- The machine is intended for PET bottle projects that require consistent clarity and automated processing.

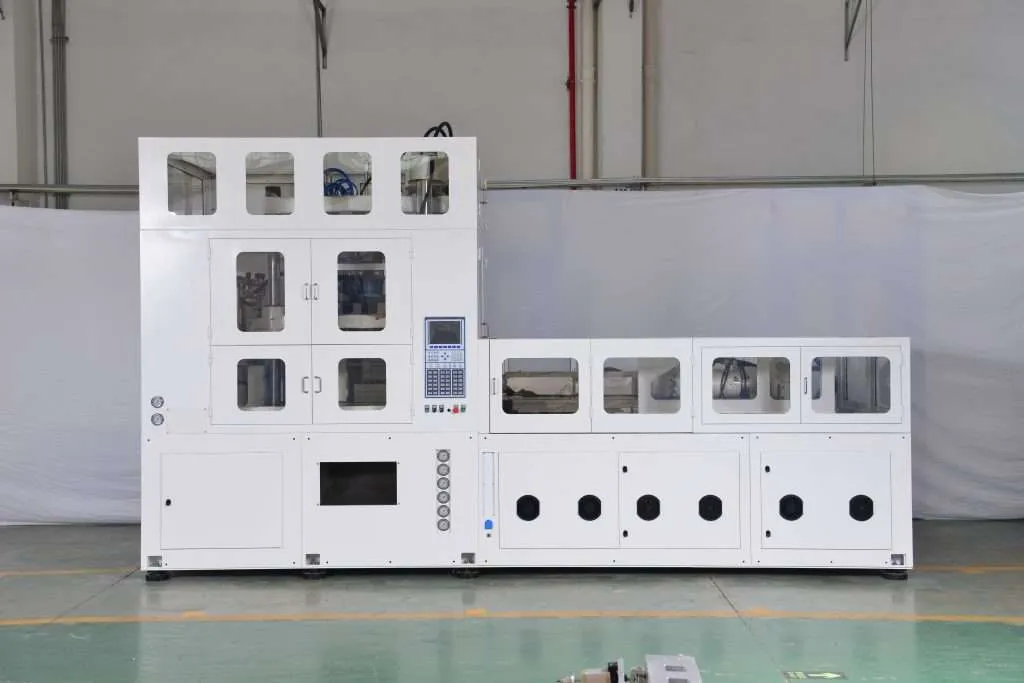

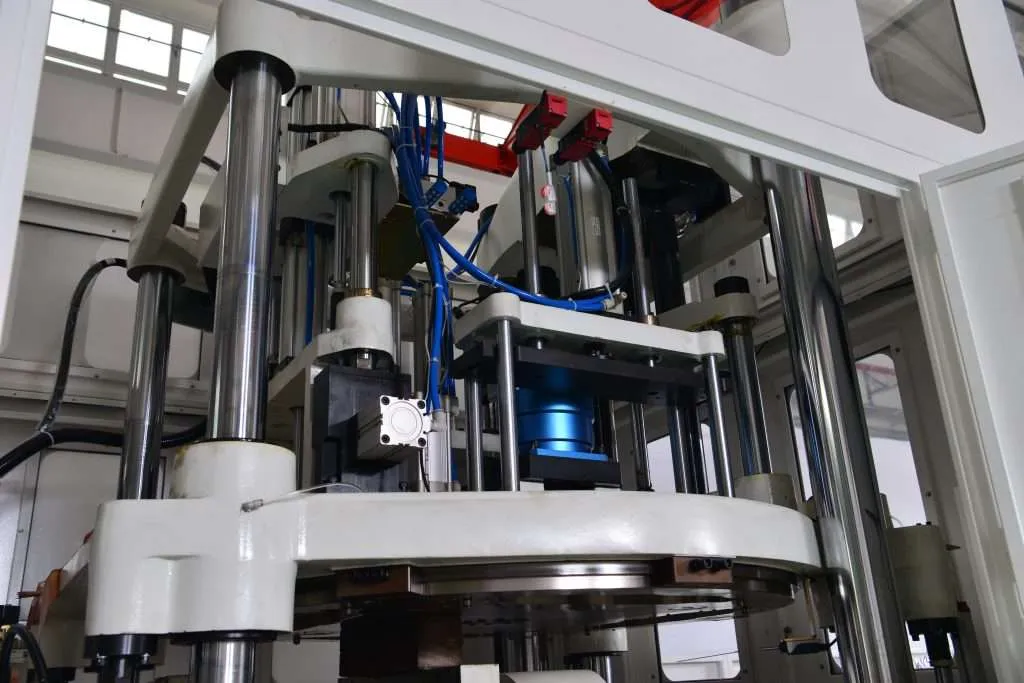

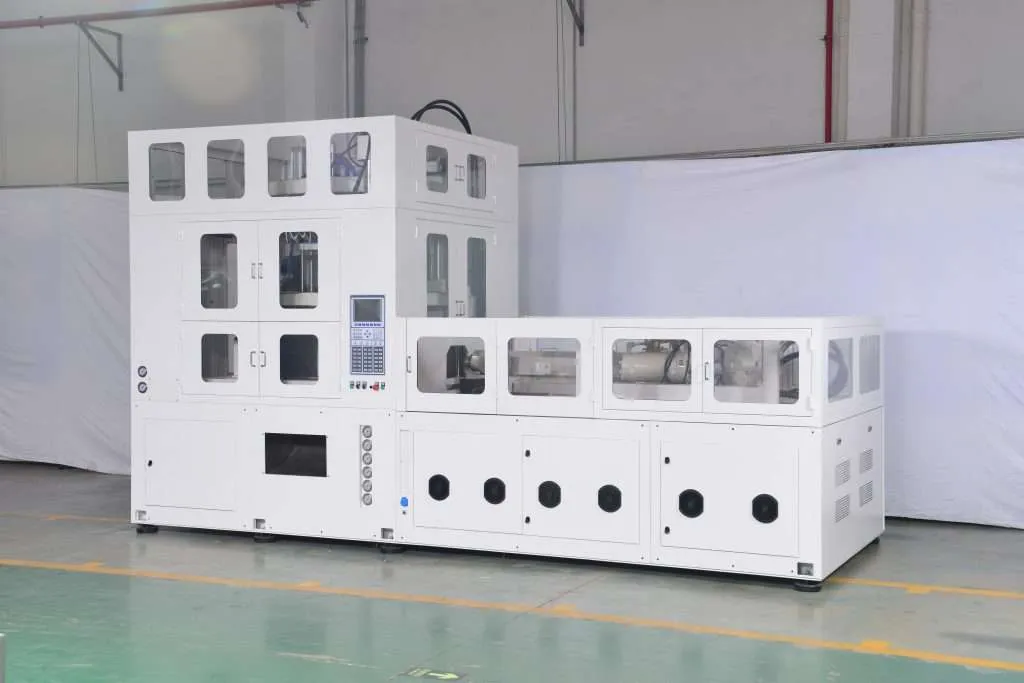

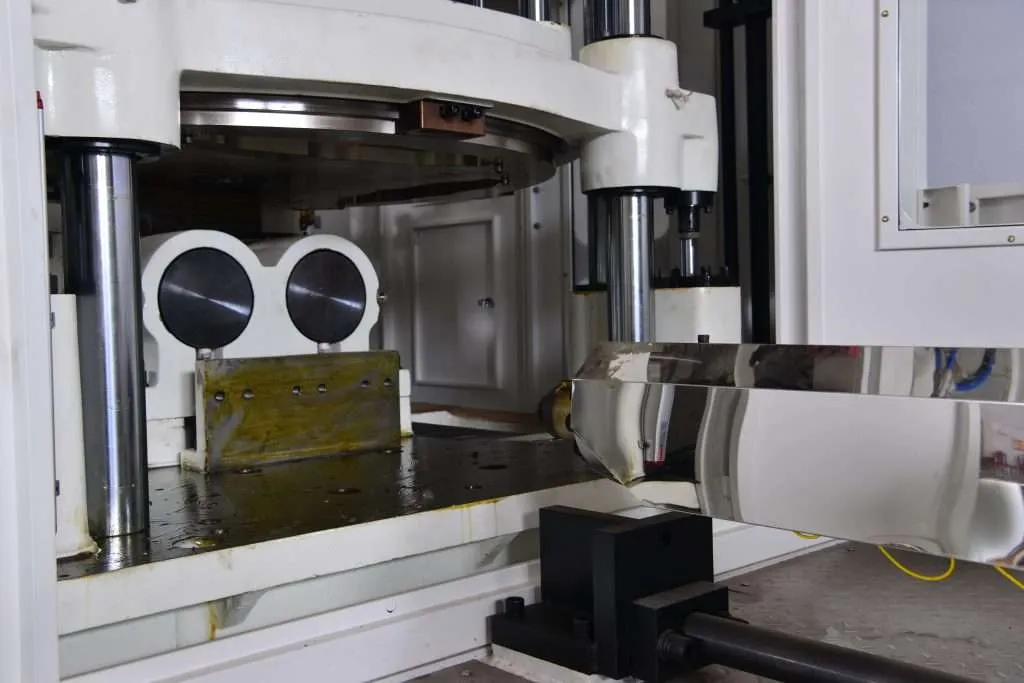

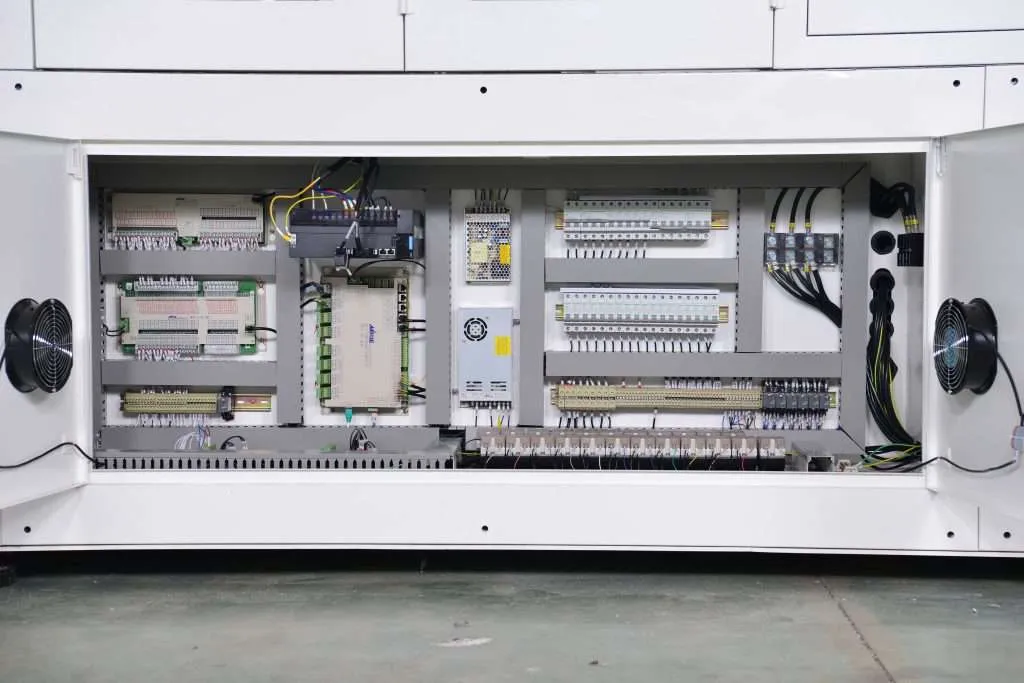

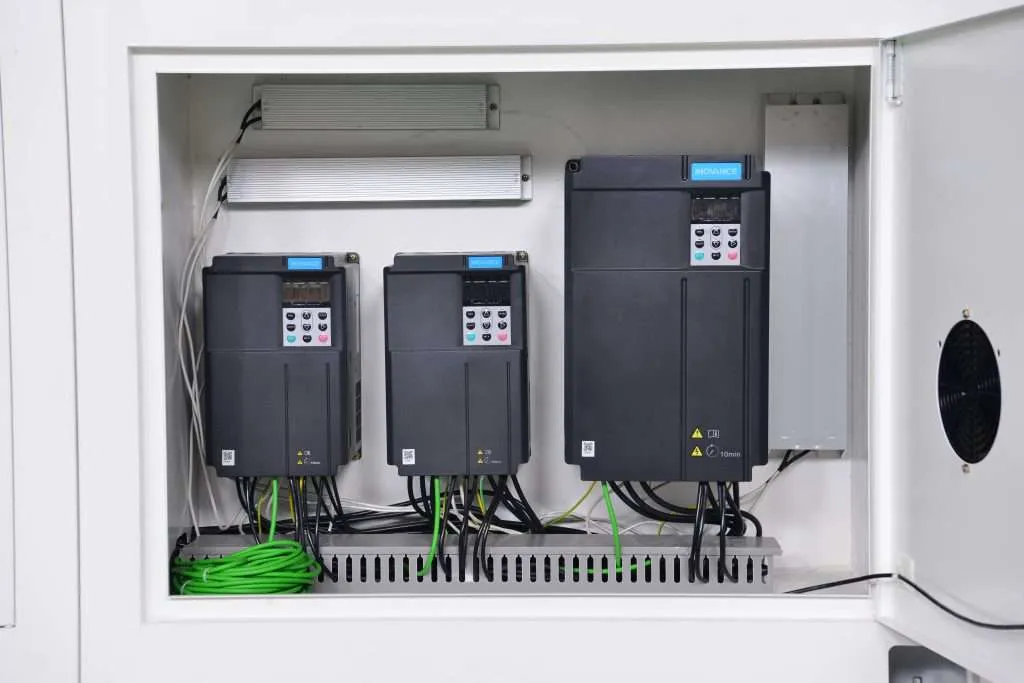

A closer look at BPET-125V4
Request a BPET-125V4 project quotation
Share your bottle drawing, picture or target volume. We’ll review machine selection, mold coordination and your project requirements.
